Electric Bus Powertrain Solutions

Welcome to our advanced electric powertrain solutions for buses, where innovation meets reliability. Experience enhanced efficiency, quiet operation, and eco-friendly transportation solutions for urban and intercity bus fleets.

Get in Touch

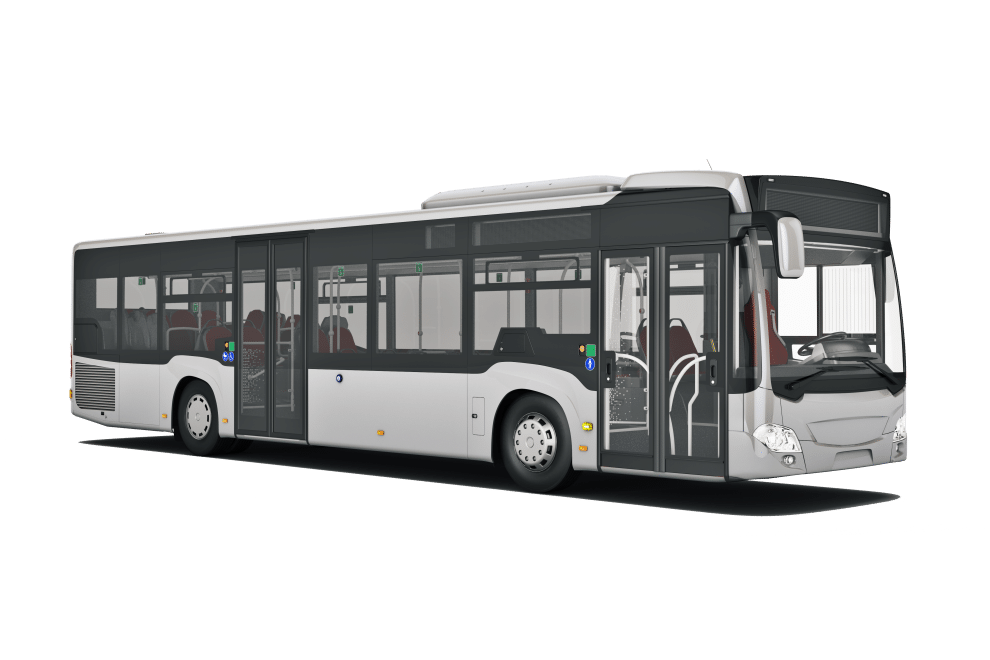

white-city-bus

Safer, Smarter, and Cleaner Transportation

Aligned with industry trends, our EV solutions support bus and coach manufacturers, fleets, and public transport agencies in transitioning toward zero emissions, zero accidents, and improved efficiency.

Brogen not only provides efficient powertrain systems but also configures power battery, steering system, braking system, and control system for customers.

By integrating software and hardware, we assist clients in system installation, as well as further software design and debugging.

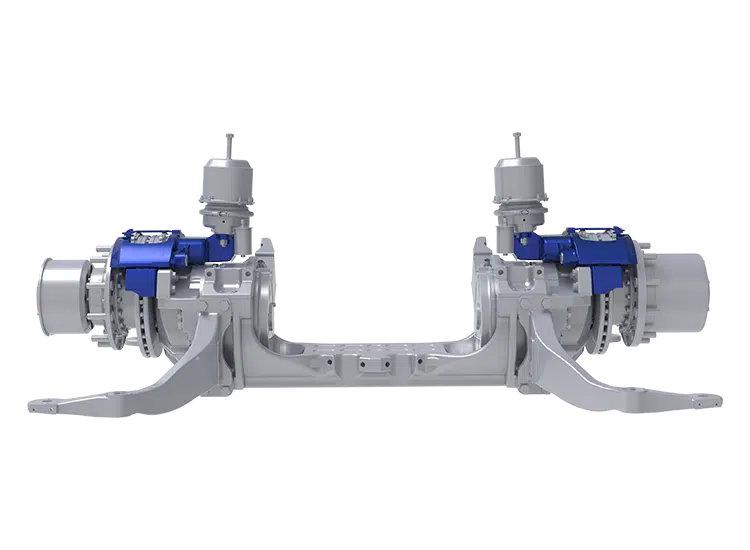

Introducing Our Electric Drive Axle System

Cutting-edge Distributed Drive-by-wire System
Get in Touch

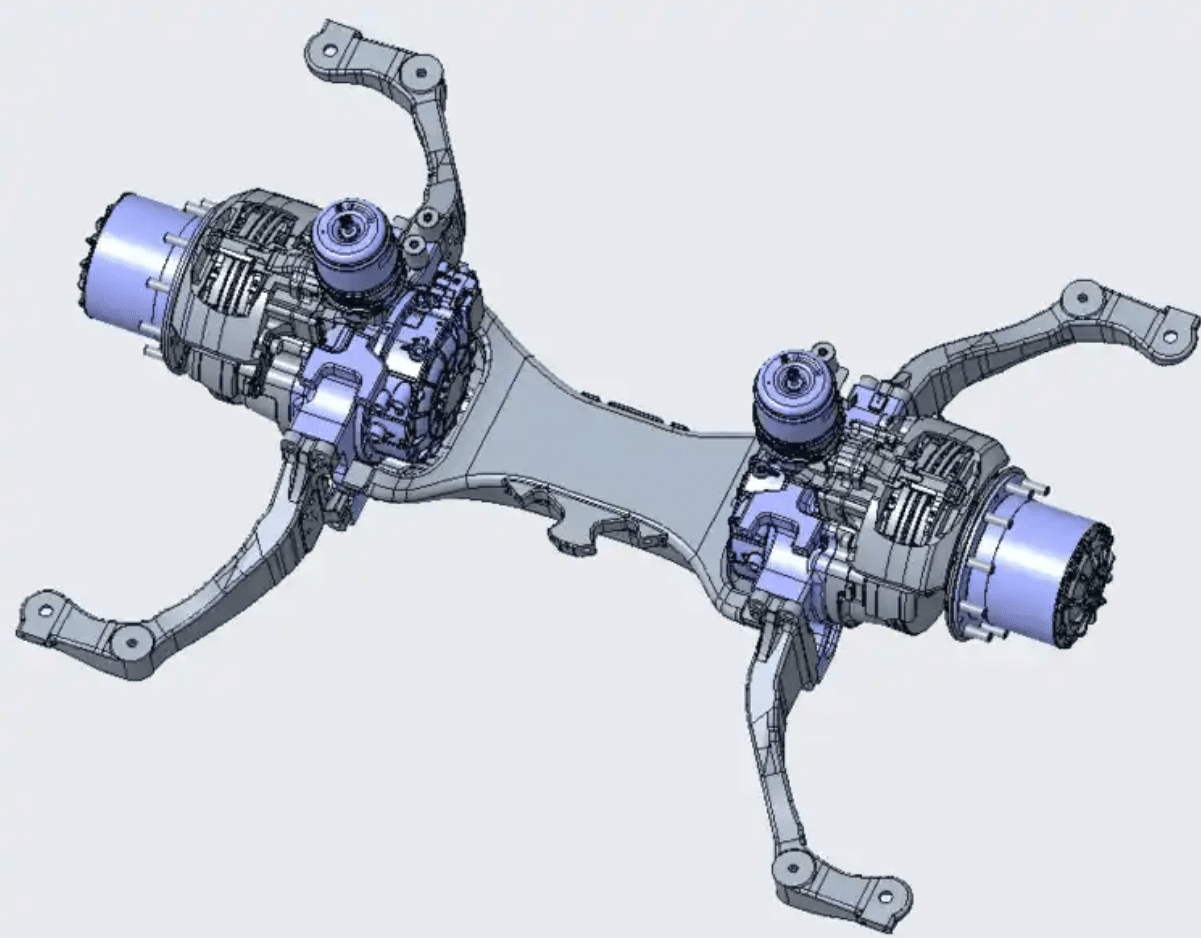

What is a Distributed Drive System?

Inspired by a forward-thinking design philosophy, we have embraced a lightweight, compact design approach for our EV drivetrain systems.

The system adopts a dual-motor configuration, achieving a short transmission chain and lightweight design through wheel-side reducers, thereby enhancing transmission efficiency. The integrated design saves chassis space, allowing the battery to be positioned underneath. Wheel-side vector control technology further optimizes the vehicle's handling and maneuverability.

Our advanced technology and integrated systems guarantee that your vehicles achieve peak performance and reliability while optimizing efficiency and minimizing costs.

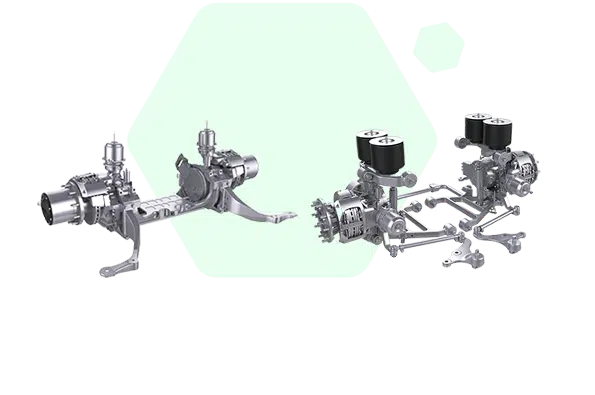

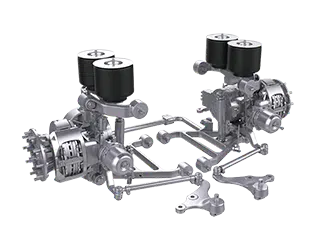

Distributed Drive-by-wire Systems

Up to 4 independent suspensions and 4-wheel drive. All four wheels can output torque in real-time according to demand, which provides greater stability and reliability for the vehicle.

High System Efficiency

By utilizing high power density tech, precise gear processing, and modular design, the system’s transmission efficiency reaches 98.6%. With a short transmission chain, this design effectively frees up chassis space, reduces system weight and decreases energy consumption by more than 15%.

Low-floor & Full Flat Design

Our battery cells are sourced from world-class manufacturers such as CATL, ensuring the highest quality and performance.

Safe & Less Maintanance

IP68, mature and reliable EDS(electronic differential), with tirechange mileage exceeding 100,000 kilometers ensuring high vehicle productivity and long lifespan, thus lowering TCO for the vehicle.

Public Transportation

Solutions for 6-18 Meters E-Bus

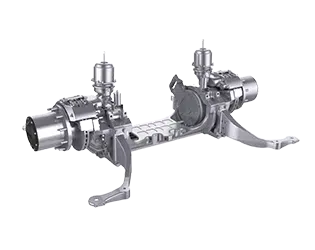

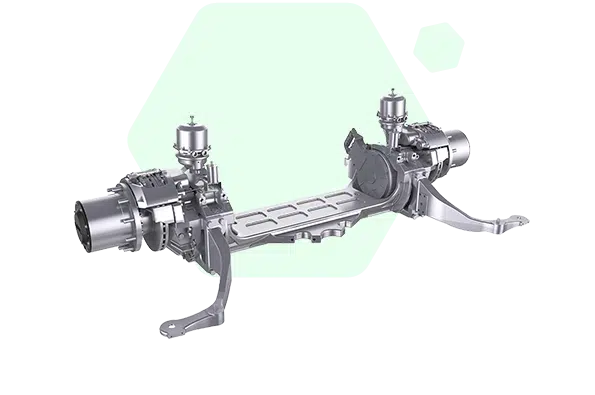

01.  Electric Axle Drivetrain

  • Low-floor & Full Flat Design

    We supply integrated electric axles for buses, coaches, and even metro vehicles. The electric axles for buses are suitable for hybrid or fully electric buses from 5 to 18 meters in length. The distributed electric drive axle system is connected to the vehicle body via air suspensions, enabling a fully flat and low-floor design for buses.

Tech Specs.

Model Z0035AETS60AE85AE95AEN0012AEF058AEK0011AE31PE
E-Axle TypeParallel-AxisParallel-AxisParallel-AxisParallel-AxisDistributed DriveDistributed Drive Distributed Drive Coaxial
Rated/Max. Power60/120 KW80/160 KW80/160 KW200/320 KW2x80/2x160 KW2x37/2x74 KW 2x55/2x90 KW80/150 KW
Rated/Max. Torque145/335 N.m235/450 N.m200/450 N.m350/750 N.m2x220/2x580 N.m2x126/2x382 N.m 2x140/2x350 N.m230/650 N.m
Rated/Max. Speed12000 rpm4100/12000 rpm3600/12000 rpm4093/12000 rpm8000 rpm10000 rpm 9500 rpm3400/10000 rpm
Gear Ratio16.616.47320.47519.22018.5810.63 17.5519.89
System Output Torque5300 N.m7412 N.m9214 N.m14415 N.m21552 N.m8121 N.m 12285 N.m13000 N.m
System Output Speed723 rpm728 rpm586 rpm624 rpm430 rpm940 rpm 540 rpm503 rpm
Total Weight270 kg300 kg525 kg583 kg1080 kg550 kg 950 kg /
Axle Load3500 kg6000 kg8500 kg9500 kg13000 kg5000 kg 5000 kg8500 kg
Application6 m bus7m road vehicle8 m bus/road vehicle10.5 m bus; 11 m road vehicle10.5 m - 18 m busTourist bus virtual rail metros with rubber-tire8 m - 8.5 m bus

02. Electric Direct Drive System

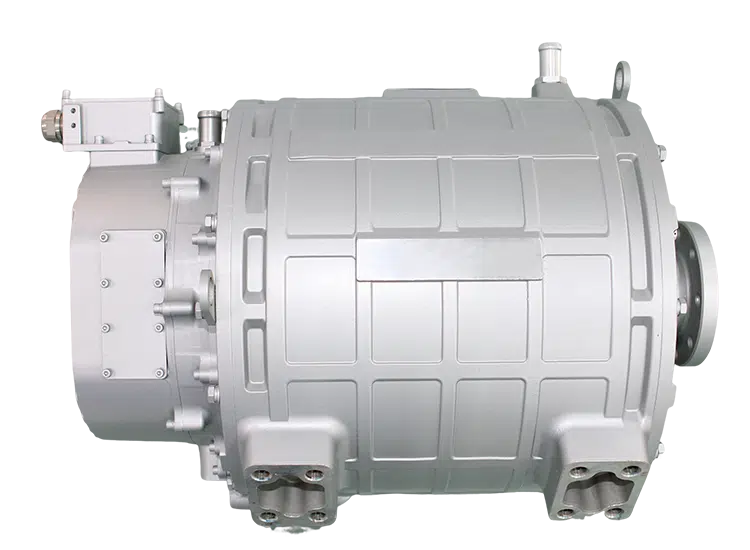

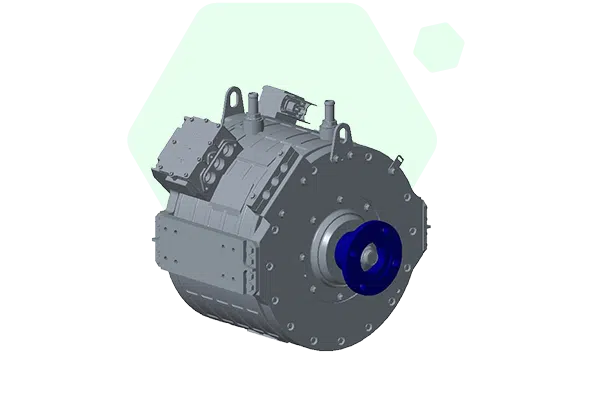

  • PMSM Motor

    With a power range of 70 - 400 kW and a torque range of 500 - 5000 N.m, our e-powertrain solutions reduce operational costs and energy consumption for buses. The exceptional power performance of our electric motors ensures that buses perform reliably in high-frequency use and under frequent start-stop conditions, delivering safe, durable, and efficient power for long-term, dependable operation.

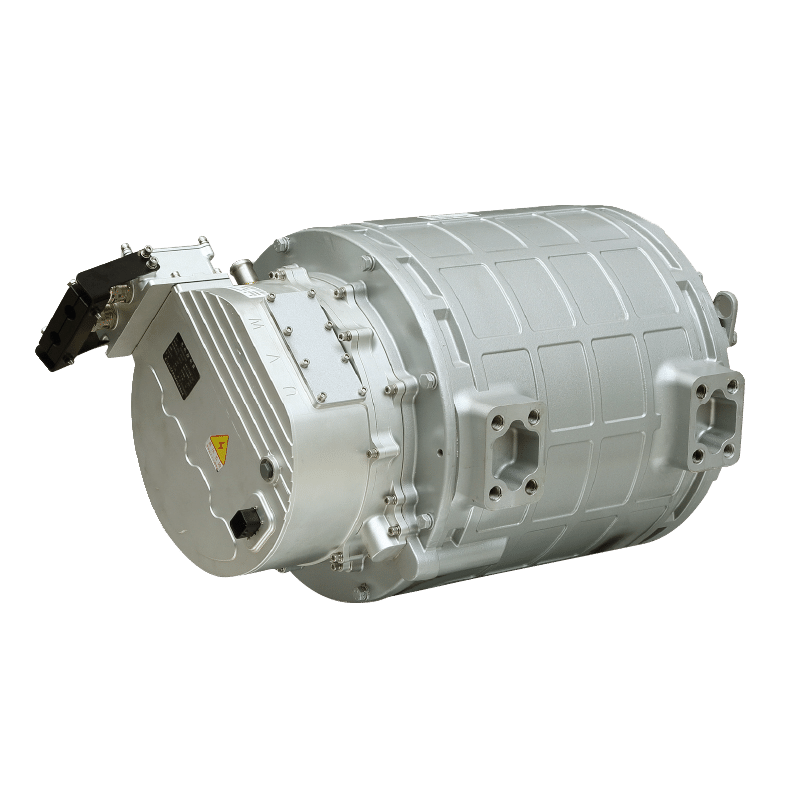

    electric-motor-for-bus

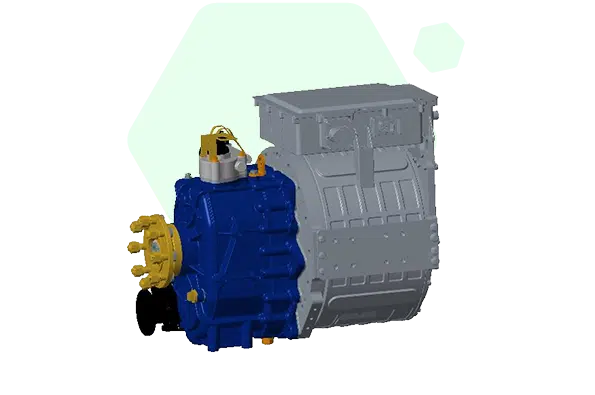

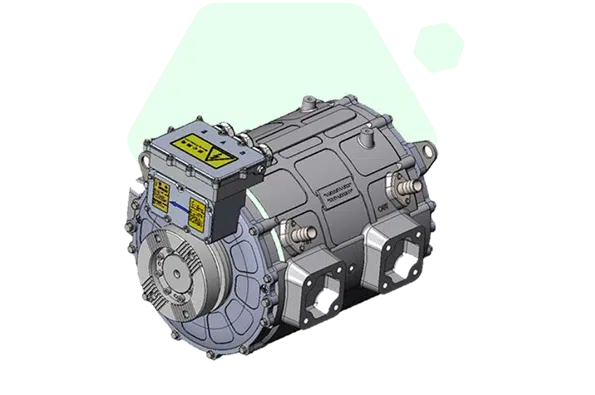

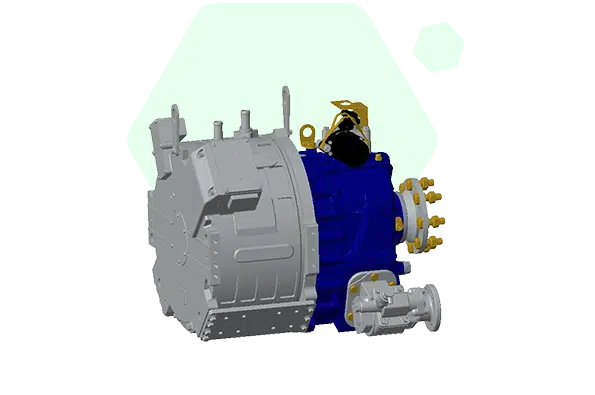

  • Motor with AMT

    The system features a lightweight, PMSM motor coaxially connected to an AMT, enabling smaller motors to match the performance of larger direct-drive units through torque amplification and speed adjustment. This design allows buses to handle gradients of 25% or more while significantly reducing weight—by up to 50%—and optimizing energy efficiency by keeping the motor within its high-efficiency operating range.

    bus motor with AMT

Tech Specs.

Motor Parameters
Continuous Power Peak PowerContinuous TorquePeak TorquePeak Speed
120 KW200 KW1300 N.m2800 N.m2500rpm
100 KW 200 KW1000 N.m2500 N.m2700 rpm
90 KW 180 KW860 N.m 2150 N.m 2700 rpm
90 KW 150 KW636 N.m1700 N.m3000 rpm
70 KW 130 KW400 N.m1000 N.m4500 rpm
110 KW 220 KW500 N.m1100 N.m4500 rpm
100 KW 190 KW500 N.m1300 N.m4500 rpm
80 KW 150 KW750 N.m1700 N.m3000 rpm
75 KW 155 KW900 N.m2100 N.m2800 rpm
100 KW 200 KW1000 N.m2500 N.m2800 rpm
180 KW 290 KW1600 N.m3400 N.m3000 rpm
200 KW 400 KW2200 N.m5000 N.m3000 rpm
Motor with AMT
TransmissionMotor Rated/Peak PowerMotor Rated/Peak TorqueMotor Peak SpeedMax. Output Torque
2.741/180/160 KW500/1100 N.m4500 rpm3015 N.m
2.741/1120/185 KW500/1300 N.m 3500 rpm 3380 N.m
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

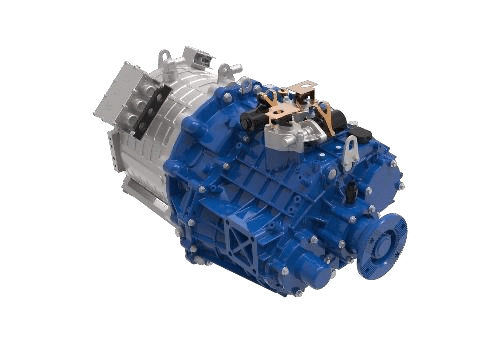

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Case show

Successful Projects

  • 280 kWh High Voltage Battery Solution for Turkish Electric Bus

    Our client, a commercial vehicle manufacturer based in Turkey, has a wealth of experience in producing traditional diesel-powered buses. Driven by Turkey's environmental policies, they initiated a new project in 2022 to manufacture electric buses.

    We successfully delivered seven sets of 280 kWh battery packs and developed the corresponding Battery Management System (BMS) and cooling systems. Currently, the 8-meter bus and 12-meter bus are undergoing normal testing and have obtained professional certification ECE R100 for mass production.

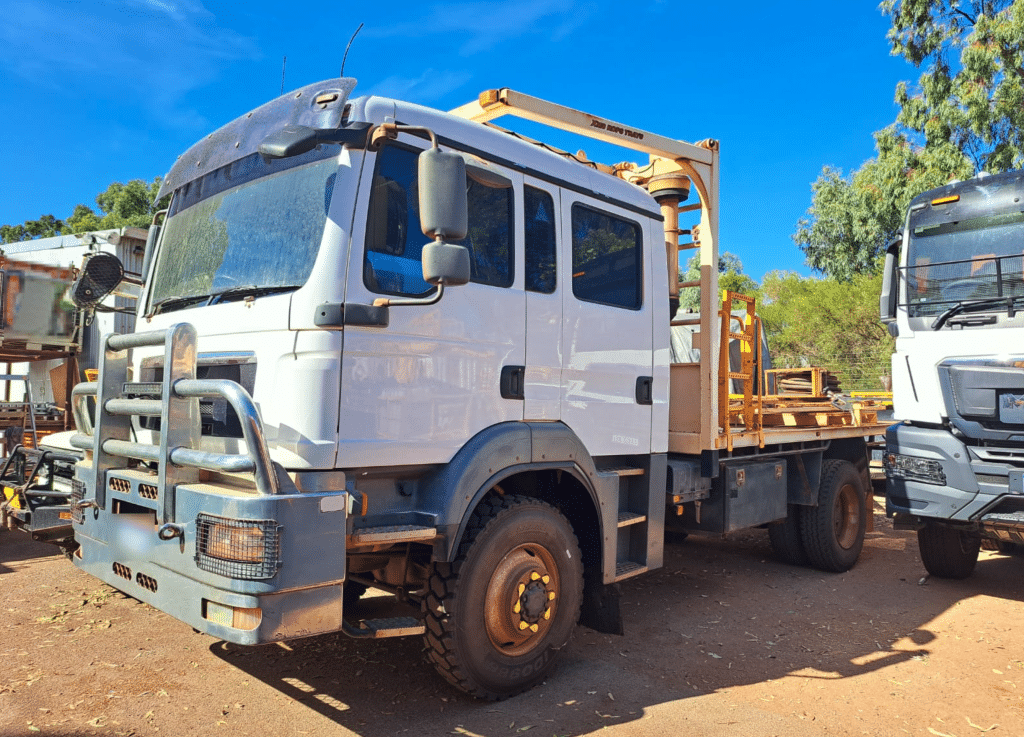

  • Electrification of Heavy-Duty Trucks and Drilling Equipment in Australia

    To support Australia's push for environmental sustainability, this project introduces 15-ton and 18-ton electric trucks and advanced electric drilling equipment tailored to local needs. Aimed at the mining, construction, and logistics sectors, these solutions help reduce carbon emissions, cut operating costs, and improve efficiency, highlighting the growing impact of electrification in heavy machinery.

Related Products

Related Systems for EV

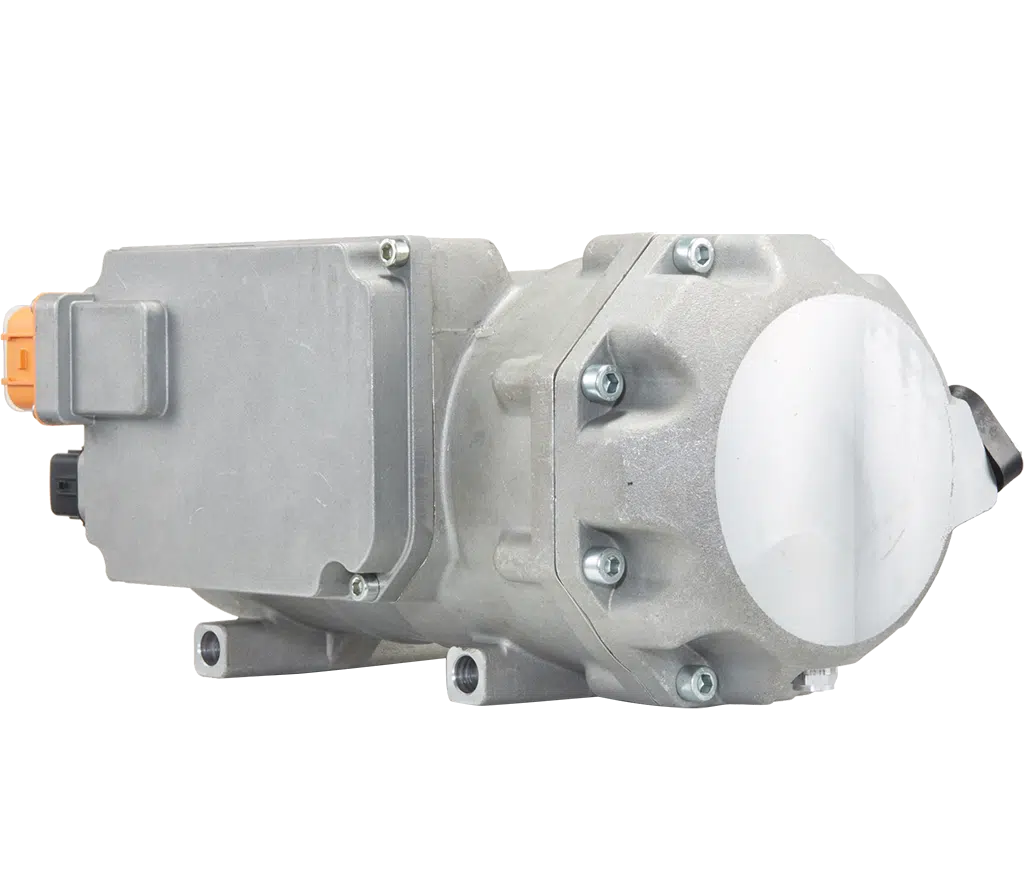

  • Electric DC Air Condition Compressor

    Displacement (cc/rev): 80/34

    Rotated Speed Range (rpm): 3000-6000/1500-6000

    Refrigerating Capacity (kW): 19.2/5.8

    Get a Quote Learn More

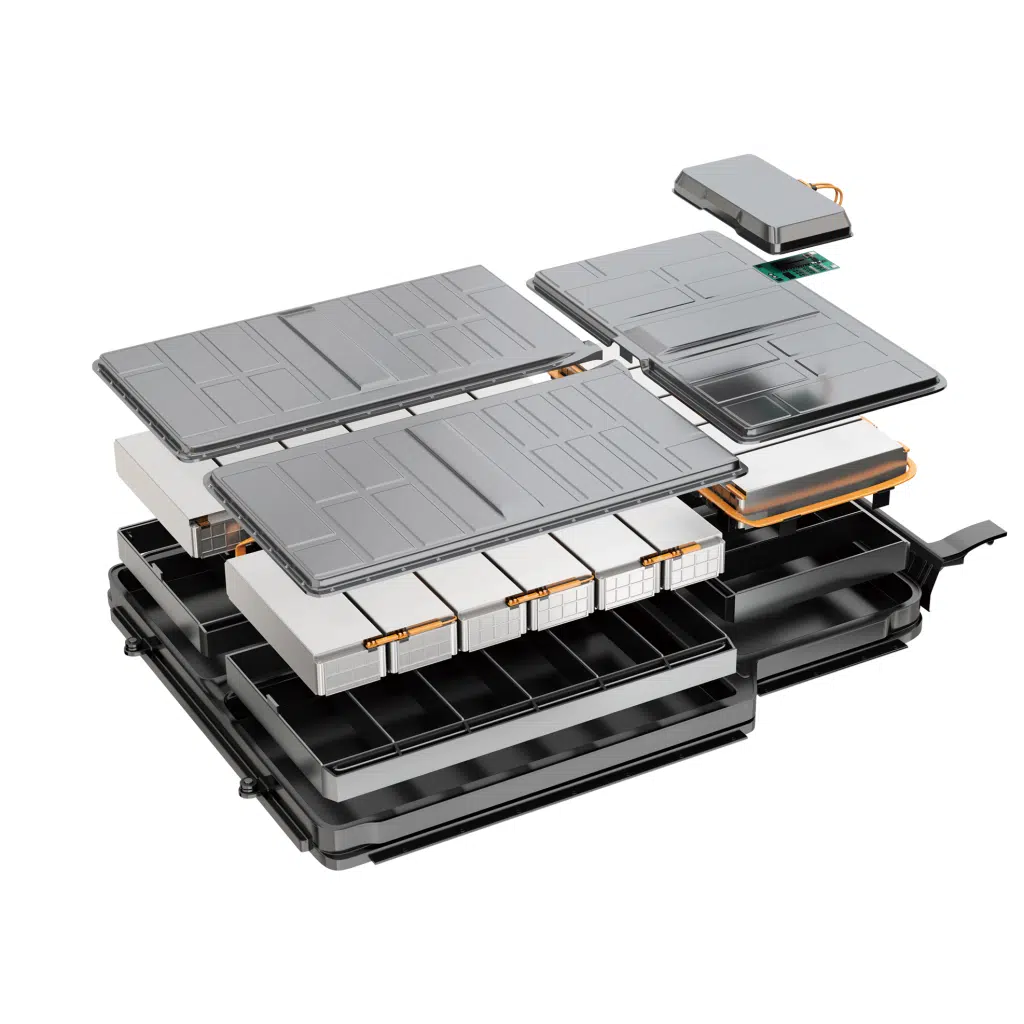

  • batterypack

    EV Battery System

    420kWh, 350kWh and 280kWh（8 battery boxes +1 high voltage box + 1 cooling unit）solutions or customized battery system.

    Get a Quote Learn More

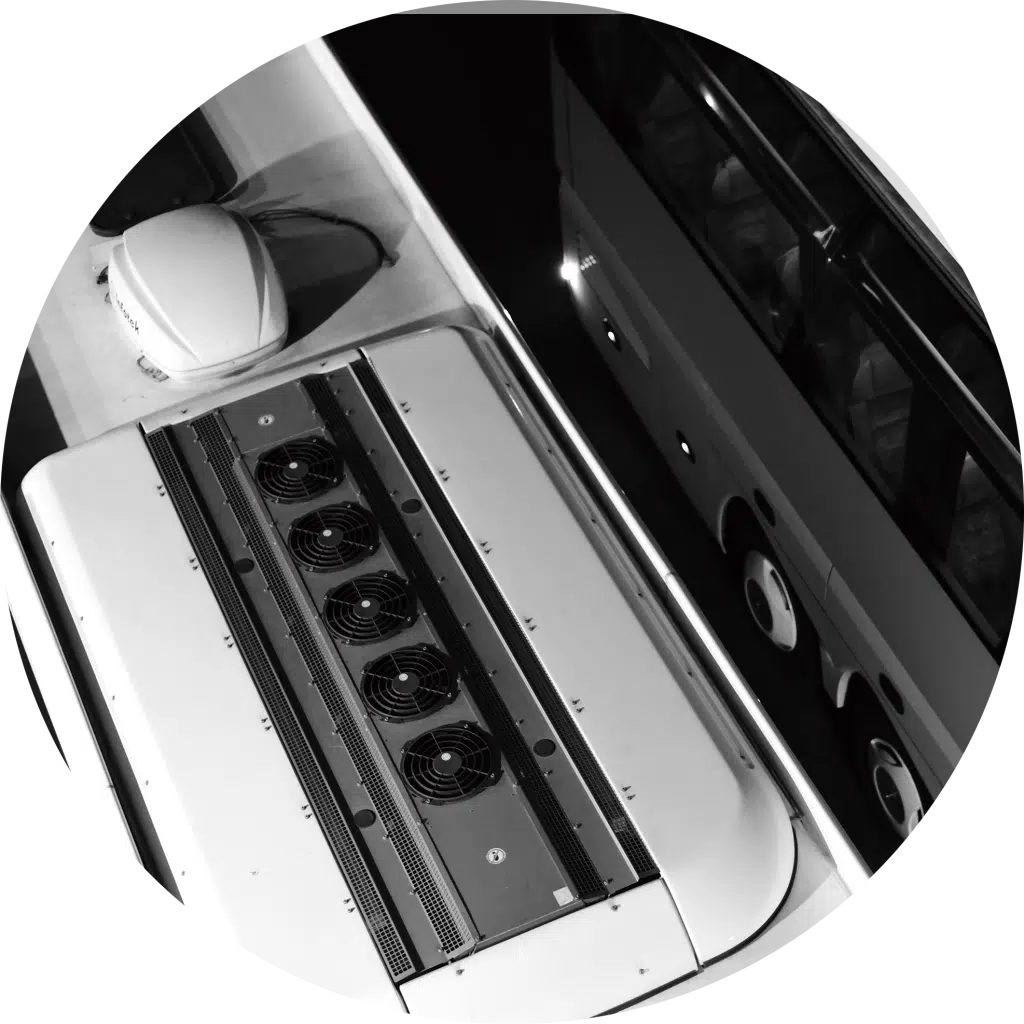

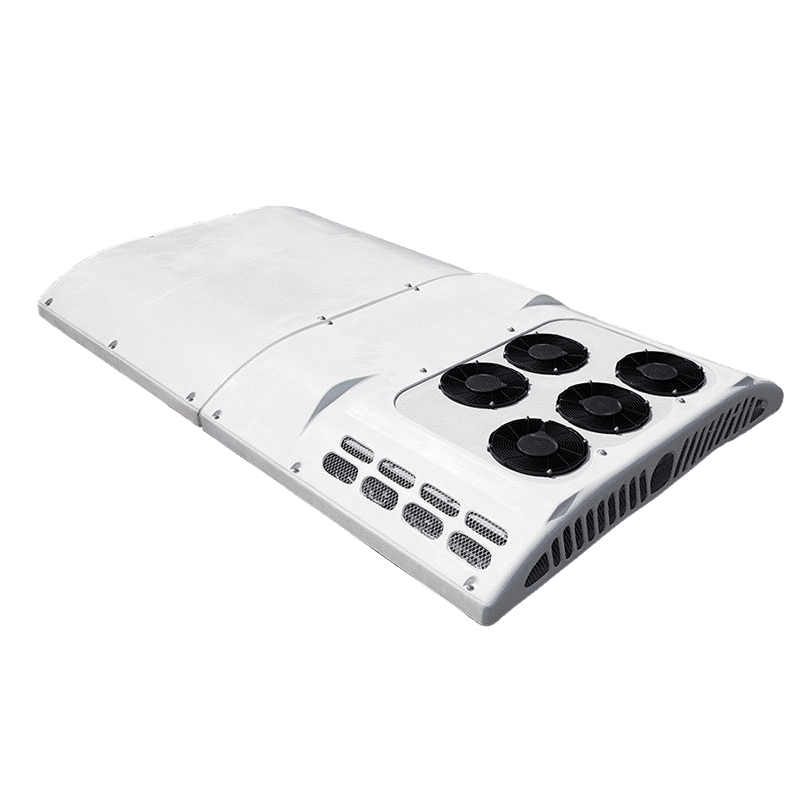

  • Air Conditioning System

    Norminal Cooling Capacity: 23KW120KW/18KW/16KW;

    Bus Length: 10.5-12.0M; 9.5-10.4M; 8.9-9.4M.

    Get a Quote Learn More

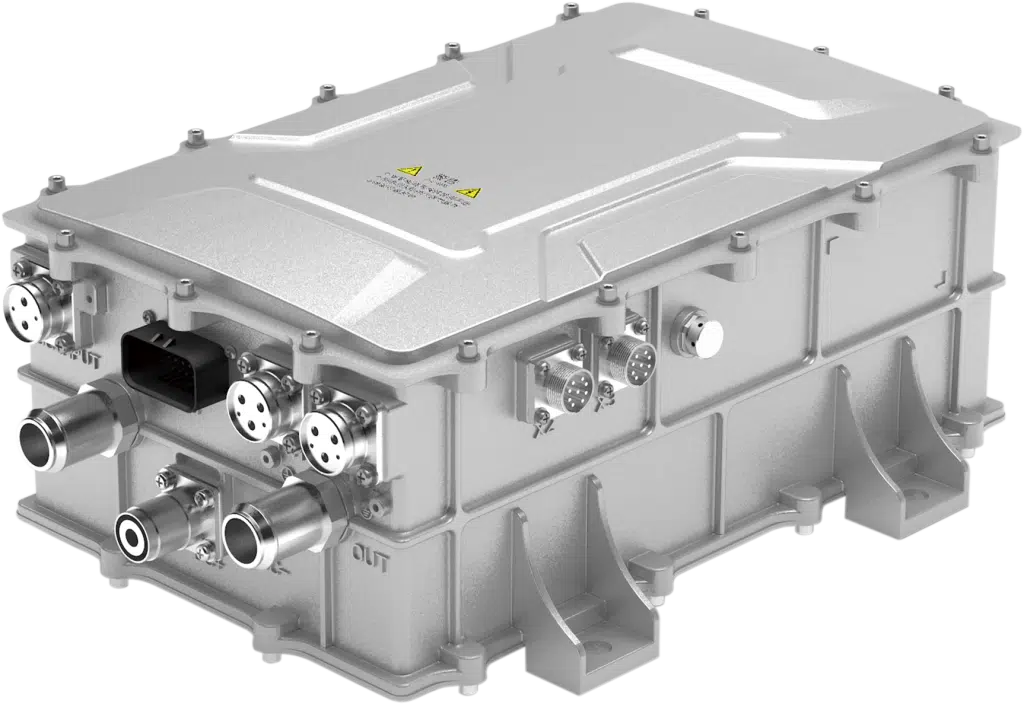

  • Auxiliary controller

    Integrated Auxiliary Inverter

    Combined DC/AC oil pump and air pump with DC/DC converter module

    Get a Quote Learn More

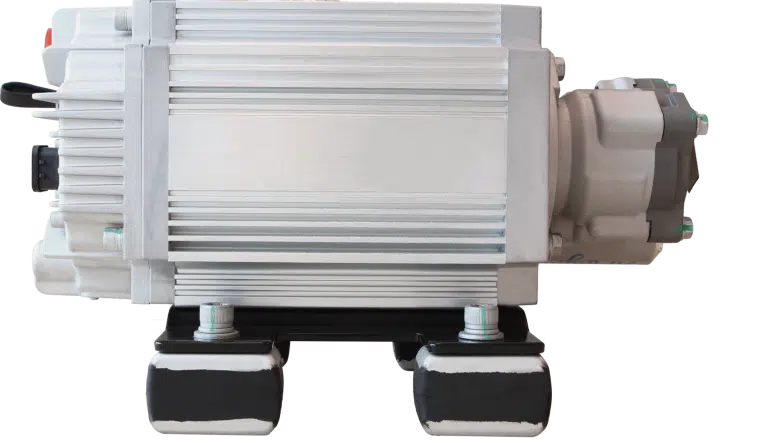

  • Electric Hydraulic Power Steering – EHPS

    Electric Hydraulic Power Steering

    The dual power electric steering pump operates using both a highvoltage battery pack (DC540V) and alow voltage battery (DC24V). If the high voltage supply disconnects suddenly, the low voltage system takes over, allowing the electric power steering to function seamlessly.

    Get a Quote Learn More
  • 60&80KW DC charger

    L3 DC Fast Charging Stations

    60 kW - 320 kW

    Future-proof design with 1000 V max output

    Available with different power and voltage configuration for global markets

    Get a Quote Learn More

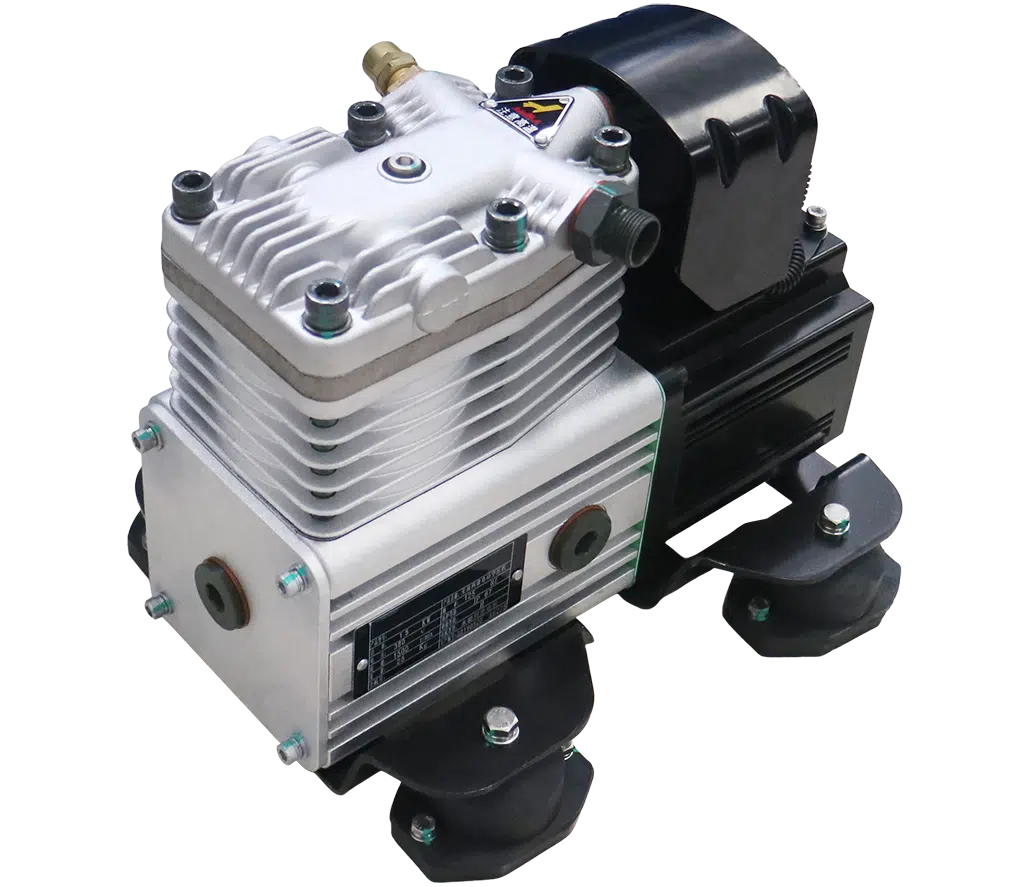

  • air brake compressor

    Electric Air Brake Compressor

    Brogen offers robust solutions for heavy commercial vehicles, including trucks, buses, and trains. One of Brogen's standout innovations is the latest oil-free scroll air compressors.

    Get a Quote Learn More

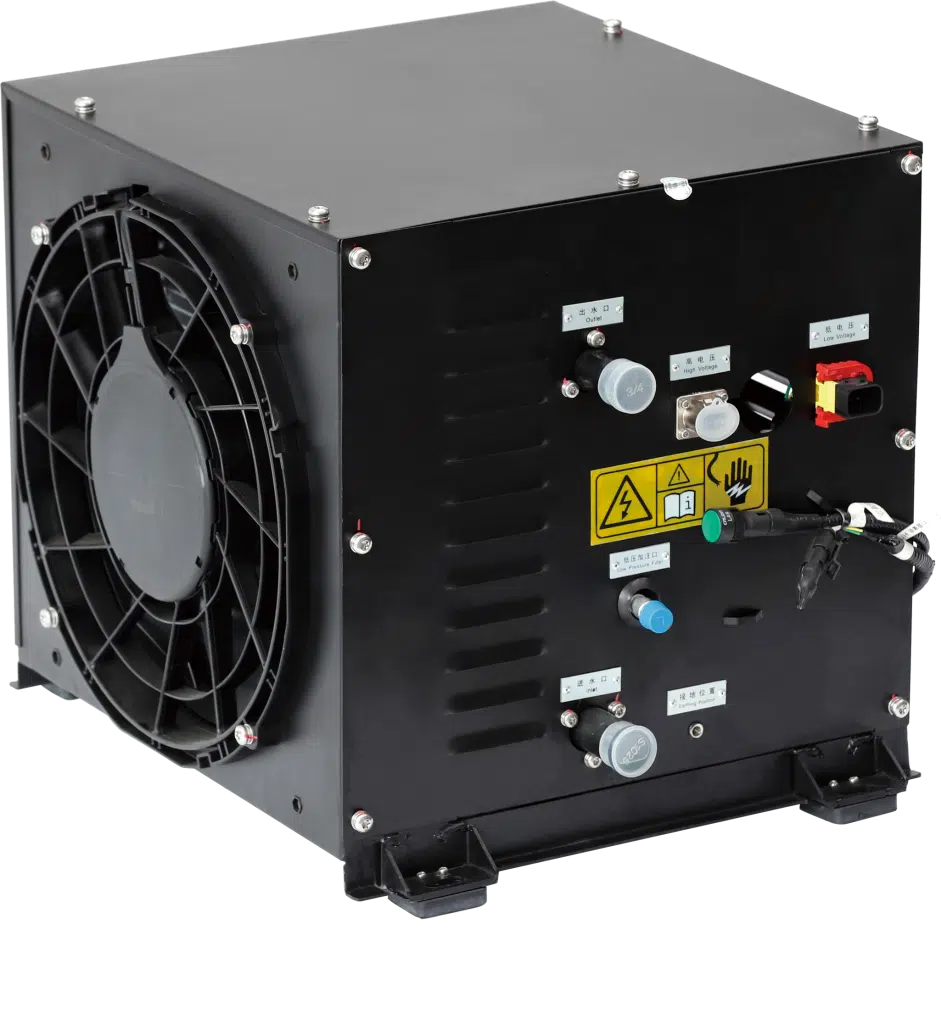

  • btms

    Battery Thermal Management System

    The battery thermal management system is a key technology to solve battery heat-related problems and ensure the performance, safety and life of power batteries. Intelligent battery thermal management system maintains longer driving range and enhances longer battery life.

    Cooling Capacity: 5KW/7KW/8KW

    Refrigerant Type: R134a/R410a

    Get a Quote Learn More
