Construction Machinery Solutions

Our system solution include: product development capabilities; VCU software development; matching simulation calculation; vehicle layout design; low voltage system design; high voltage system design; thermal management system development; static and dynamic calibration test.

Get in Touch

Advantages of Electrification in Construction Machinery

Brogen's EV solutions address the unique needs and challenges of electrifying construction equipments, particularly in the working conditions of urban construction sites, port airports, heavy-duty operations, and the logistics industry.

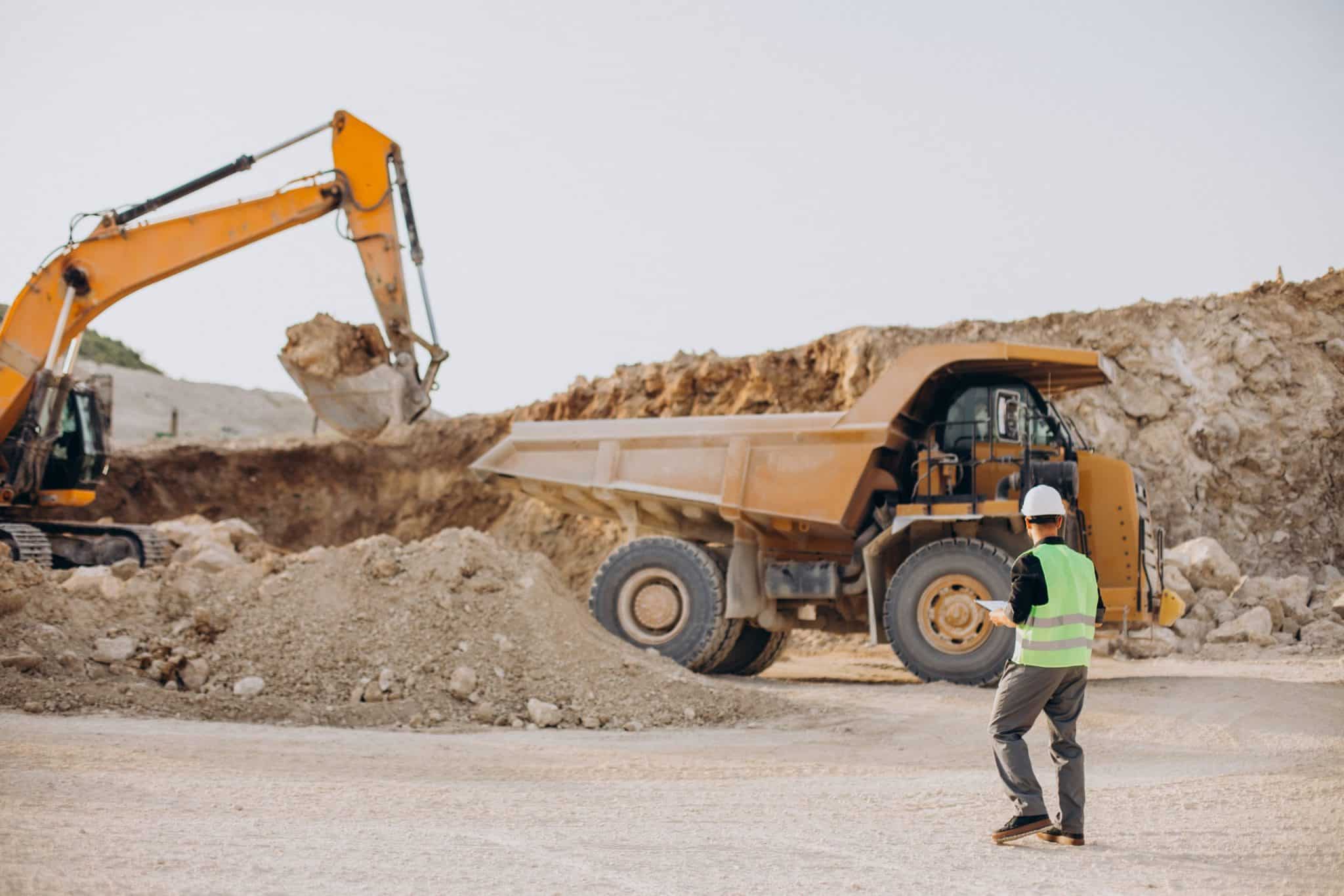

Construction sites

Global Push for Zero-Emission

Electrified equipment helps reduce carbon emissions and noise pollution, supporting companies in achieving compliance with construction regulations.

Economic Benefits

Electrified machinery consumes less energy, reducing project costs and improving efficiency, while daily maintenance expenses are also lower than those of fuel-powered vehicles.

Foundation for Smart Development

Focusing on intelligent operation, assistance, and digital workflows, it enables future optimization of processes, enhances productivity, and lowers operational barriers.

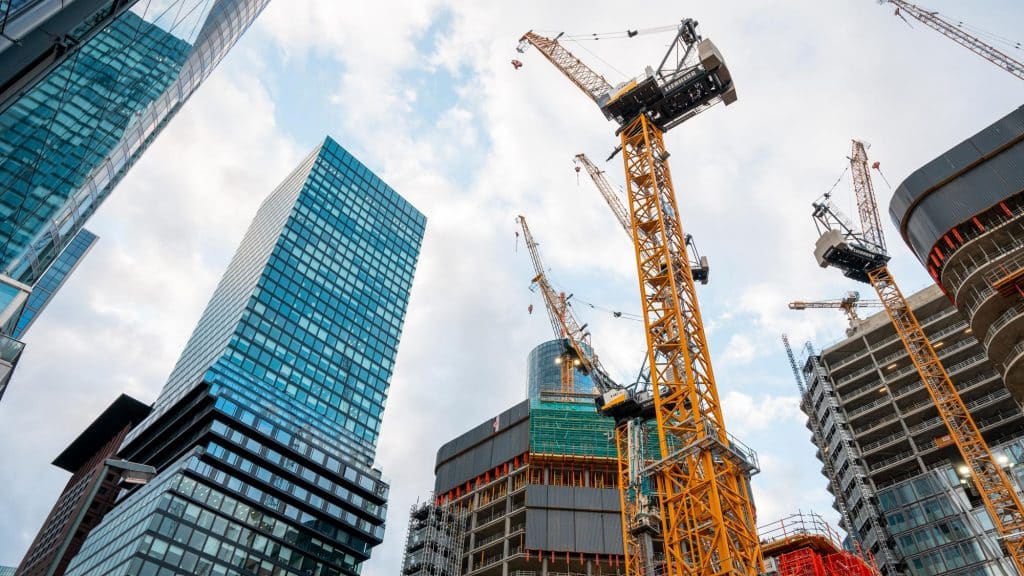

  • city-construction

    Urban Construction Sites

    Electric excavators, loaders, and rollers help cut energy costs by up to 60% while meeting carbon reduction targets. Fast-charging during breaks improves equipment uptime.

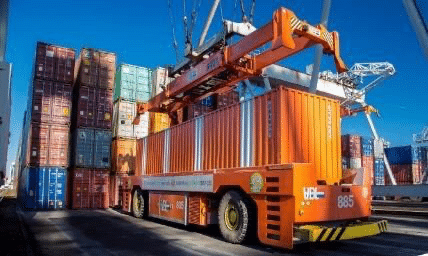

  • Ports and Airports

    Electrified ground support equipment—like forklifts, AGVs, and tractors—enables cleaner operations and supports the shift toward smart logistics.

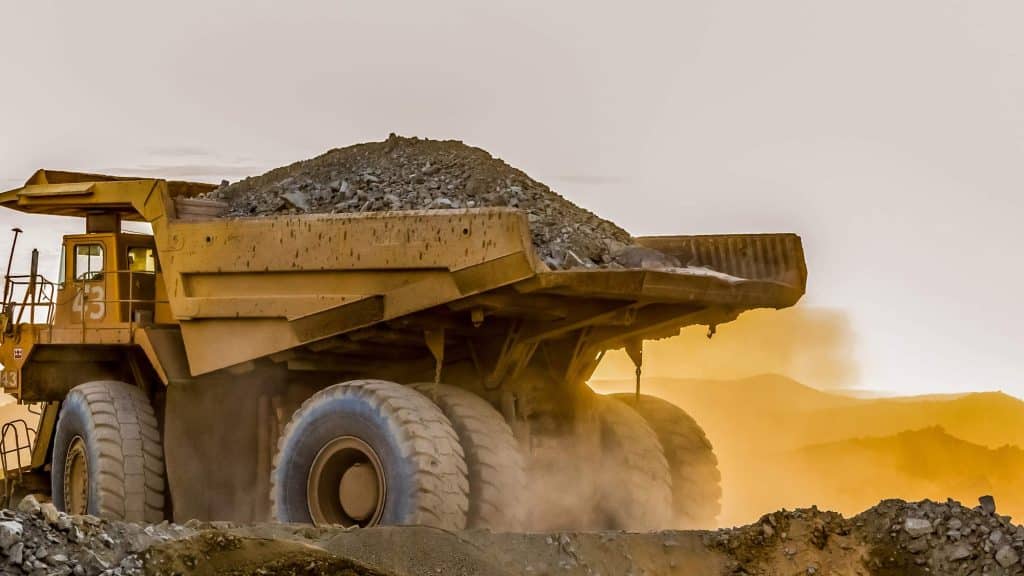

  • Mining Operations

    Electric mining trucks and drills require strong load stability and long battery life. Advanced cooling systems ensure reliability in harsh environments.

  • Logistics & Indoor Use

    Electric forklifts and compact loaders offer low-noise, zero-emission solutions—ideal for food factories, warehouses, and temperature-controlled facilities.

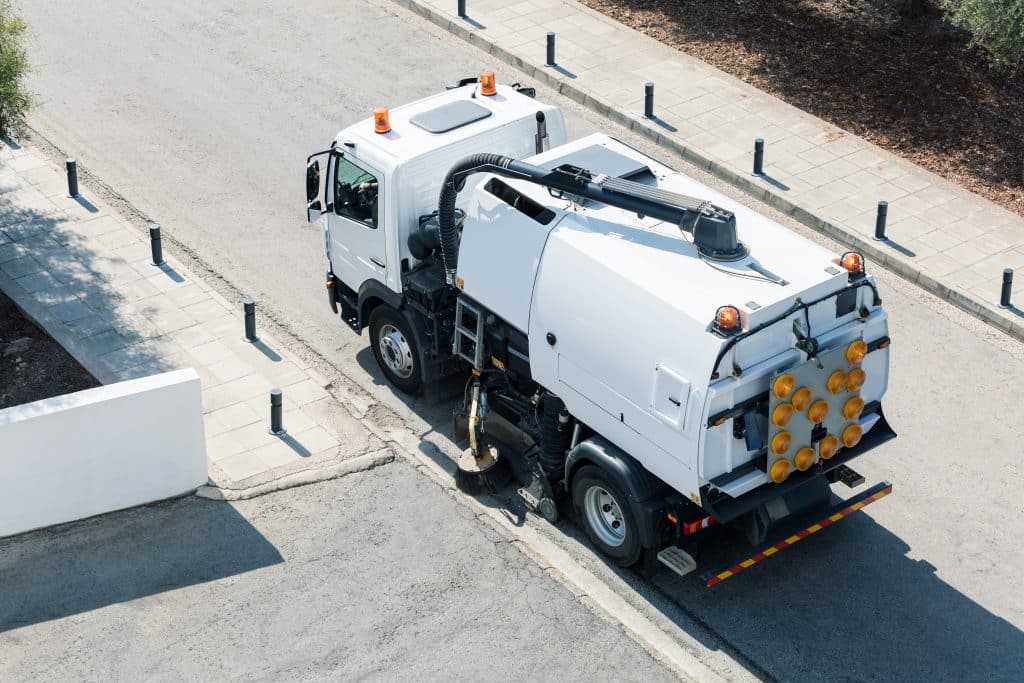

  • Municipal Services

    Electric pump trucks and sanitation vehicles support public carbon goals. Affordable electric options meet both performance and budget needs.

EV Solution for Construction Equipments

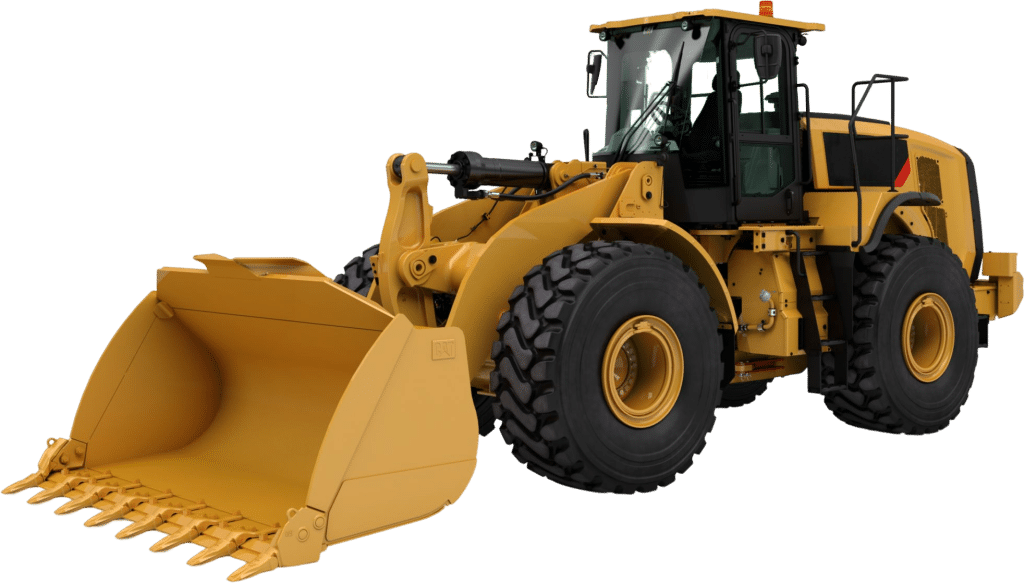

01. Electric Loaders

  • Features

    - Ideal for repetitive, fixed-location tasks on construction sites; - Delivers low noise and zero emissions; - Suitable for urban construction, underground projects, mining (reduced fuel use), port handling, farmland development, landscaping, and city greening.

    electric loader

Tech Specs.

Powertrain Parameters
Model Rated Voltage Rated/Peak Power (kW) Rated/Peak Torque (Nm)Rated/Peak Speed (rpm)Cooling MethodProtection Rating
PMSM 600 VDC 150/215 650/13002200/5500Liquid CoolingIP68
Controller Parameters
Integration MethodInput Voltage RangeMain Drive ModuleRated AC Output CurrentPeak AC Output CurrentPDU
Integrated MCU and PDUDC 400V—750V800A 245A570APTC Heating
Battery Parameters
Cell Type Nominal Voltage Normal Operating Voltage Range Nominal CapacityTotal EnergyMax. Continuous Charging CurrentMax. Continuous Discharging Current
LFP 614.4 V 480V - 700.8V 460Ah282.624 kWh400A dual port300A
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1

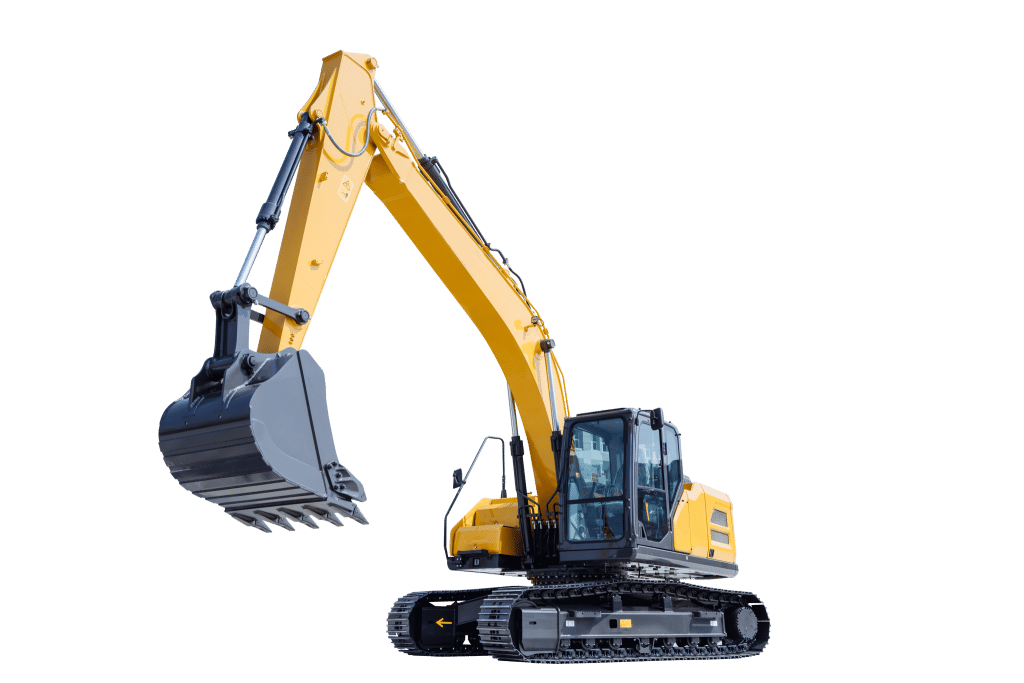

02. Electric Excavators

  • Features

    - Designed for long operation times without frequent refueling
    - Lower operating costs with minimal noise and emissions
    - Perfect for use in densely populated urban areas

Tech Specs.

Motor Rated/Max. Power 120/200 KW
Motor Rated/Max. Torque 700/1400 N.m
Motor Rated/Max. Speed 1637/4000 rpm
Rated Voltage 380 VAC
Weight 165 kg
Protection IP67
MCU Control Method CAN Vector Control
VCU Operating Temperature -40 - 85°C
5V Simulation Output 2 Circuits
General Analog Inputs 11 Circuits
General Digital Inputs 24 Circuits
Range Extender System (optional) Voltage Platform 300 - 600V
Battery Capacity 58.02 kWh
Energy Density 130 Wh/kg
Thermal Management Liquid Cooling / Liquid Heating /PTC

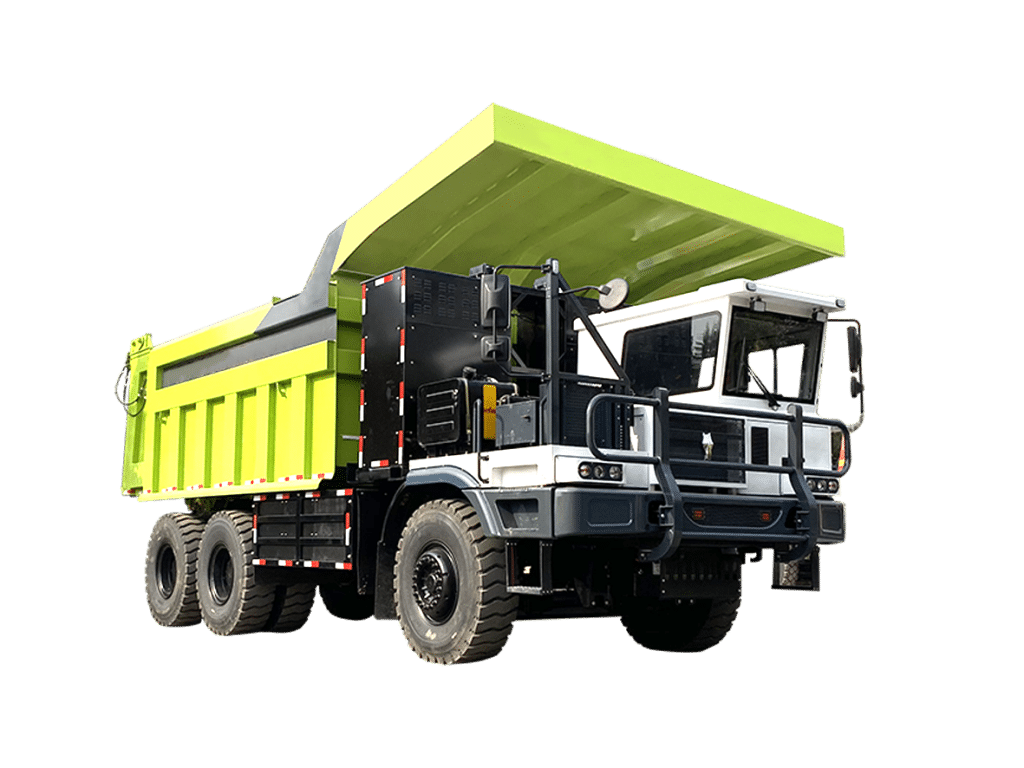

03. Electric Dump Trucks

  • Features

    - Engineered for heavy loads and extended shifts in extreme environments
    - Cost-saving: One full charge powers 5 hours of operation—1/3 the cost of diesel trucks
    - Lower maintenance needs due to simpler drivetrain
    - Environmental impact: One truck saves ~180L diesel daily; 50 trucks can cut CO₂ by 7,100 tons/year (based on 300 days)

    dumptruck

Tech Specs.

Motor + Gearbox Solution (for 49-110 T mining trucks)
Motor Rated/Max. Torque 1600/2400 N.m
Motor Max. Speed 3500 rpm
Gearbox 1/2/3/4
Gear Ratio 8.39/3.54/1.74/1
System Max. Output Torque 20136 N.m
Total Weight 610 kg
PTO (Optional) Max. Output Torque 500 N.m
PTO (Optional) Max. Output Power 110 KW
Dual Motor - Power Uninterrupted Solution (for 60-120 T dump trucks)
Motor 1 Rated/Max. Power 200/320 KW
Motor 1 Rated/Max. Torque 1190/1900 N.m
Motor 1 & 2 Max. Speed 3500 rpm
Voltage Platform 540 V
System Max. Output Torque 20934 N.m
Gearbox 6-speed AMT (7.07 4.56 2.98 2.02 1.38 1) R=6.39
Total Weight 770 kg
Electric Drive Axle Solution (for 6x4, 4x2 heavy-duty trucks)
Rated Axle Load (KG) 35000
Rated/Max. Power 115/220 KW
Rated/Max. Output Torque 275/550 KW
Motor Max. Speed 8500 rpm
Gear Ratio 35.31/25.38/16.9/12.1
Assembly Max. Output Torque 126000 N.m
Brake Type Drum Brake/φ500×230
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Trucks Solutions

Solution for 12-18 Tons Trucks

01.PMSM Motor + Controller

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

PMSM Motor Controller
Model 2SDK290XS105A TZ400XS-120
Rated Voltage 540VDC 540VDC
Rated/Max. Power 105/165 KW 120/200 KW

02.Central Direct Drive with Gearbox

  • PMSM Motor + Controller

    Quam ob rem ut ii qui superiores sunt submittere se debent in amicitia, sic quodam modo inferiores extollere. Sunt enim quidam qui molestas amicitias faciunt, cum ipsi se contemni putant; quod non fere contingit nisi iis qui etiam

Tech Specs.

Motor Parameters
Model STED7000S CE4T670 EQ700
Max. Speed 3500 RPM 3500 RPM -
Gearbox Parameters
Gear 1/2/3/4 1/2/3/4 1
Case show

Successful Projects

  • Heavy-Duty Trucks Project in Turkey

    We have provided 100+ PMSM motors, which are used in heavy-duty electric trucks, for our customers in Turkey.

  • Heavy-Duty Trucks Project in UAE

    We have provided 100+ E-axles, which are used in heavy-duty electric trucks, for our customers in UAE.

  • Heavy Duty Trucks Project in Brazil

    We have provided 300+ EV powertrains, which are used in heavy-duty electric trucks, for our customers in Brazil.
