Engineered for mid-size electric buses and coaches, this 100kW/200kW traction motor combines field-proven reliability with cutting-edge performance. Specifically optimized for 10m electric transit buses.
Technology Highlights of Brogen 100kW Electric Motor for EV
- Industry-leading 97% peak efficiency - Maximizes range and reduces energy costs
- Military-grade IP68 protection - Performs reliably in extreme weather and road conditions
- Mass-production ready - Validated through large-scale commercial deployments
The robust design and real-world operational heritage make it the ideal propulsion solution for fleet operators transitioning to zero-emission mobility.
PMSM Motor Power Parameters
Rated power 100kW: Continuous and stable output to meet the daily average 200km endurance requirement of urban buses.
Peak power 200kW (30-second overload capacity): Overcome the challenge of starting on a 12% slope; Acceleration from 0 to 50km/h takes only 18 seconds (full load condition)
Electric Vehicle Motor Specifications
| Model | OEDM2500 |
| Application Vehicle | 10 Meter Bus |
| Rated/Max. Power | 100kW / 200kW |
| Rated/Max. Torque | 1000Nm / 2500Nm |
| Max. Speed | 2800 RPM |
| Weight | 245 KG |
| Dimension | Φ 462mm X 528mm |
What Problems Will be Solved with Our Electric Drive Motor?
In the daily operation of buses, we often encounter some problems. For example, frequent starting and stopping during peak hours causes motor overheating and reduces motor power; insufficient IP protection during rainstorms leads to short-circuit start failure; the winter climate is cold, and the torque output is greatly attenuated during low-temperature start.
Our high-power and high-protection motors can perfectly solve these problems. Our motors use ceramic-based insulation materials with a protection level of IP68 or IP69. At minus 30 degrees Celsius, the cold start torque retention rate of electric buses is 92%.
Brogen - A Trustworthy Electric Motor Manufacturer

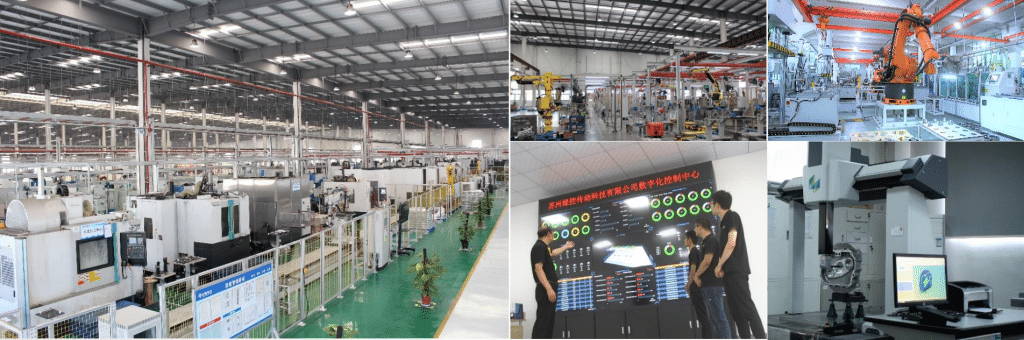

We have internationally advanced production line equipment to ensure the consistency and quality of mass production of automotive electric motors. We can meet customers' high-quality requirements for products and reduce the total cost of ownership (TCO) of bus operators.
Brogen, as a leading electric motor manufacturer in China, has five core technologies: electric vehicle drive system architecture design technology, control strategy technology, special gearbox development technology, high torque density and high efficiency drive motor technology, and controller technology.
Based on in-depth research on customer needs and industry trends, we have launched vary electric commercial vehicle powertrain products with full scenarios, full coverage, and multiple technical routes.
