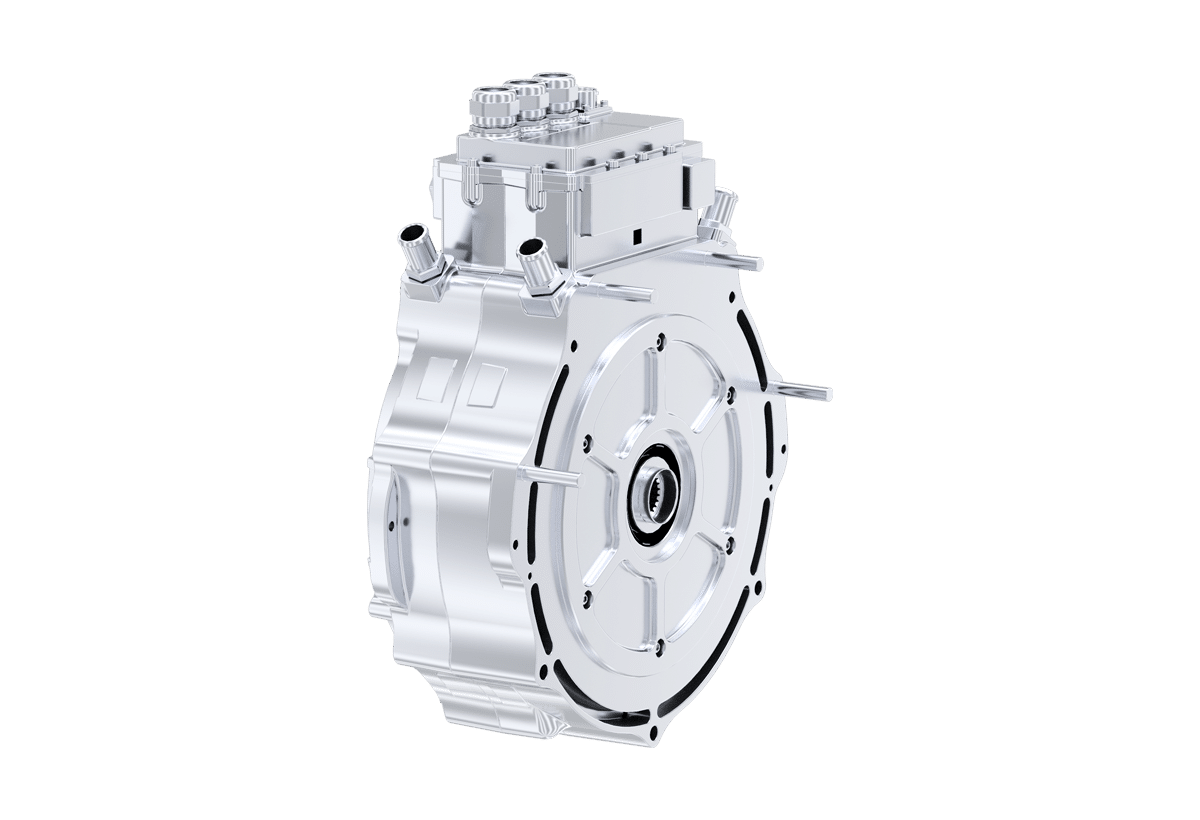

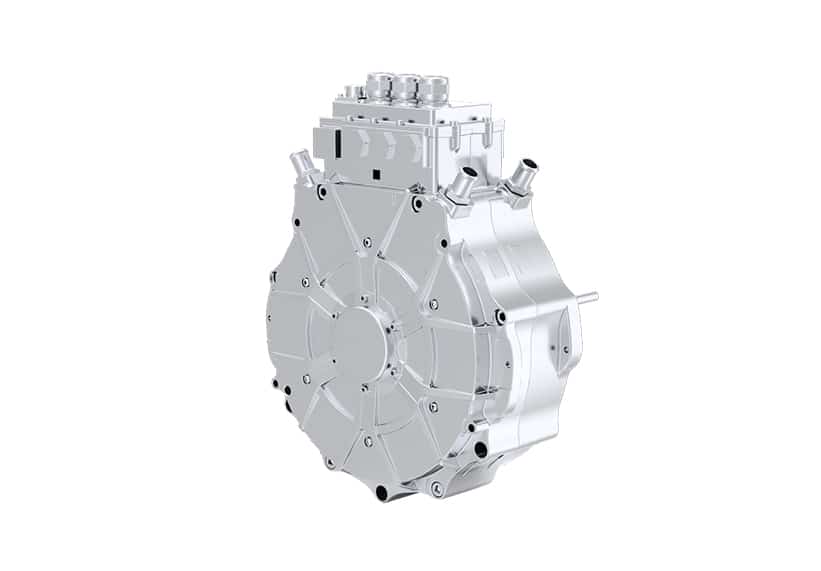

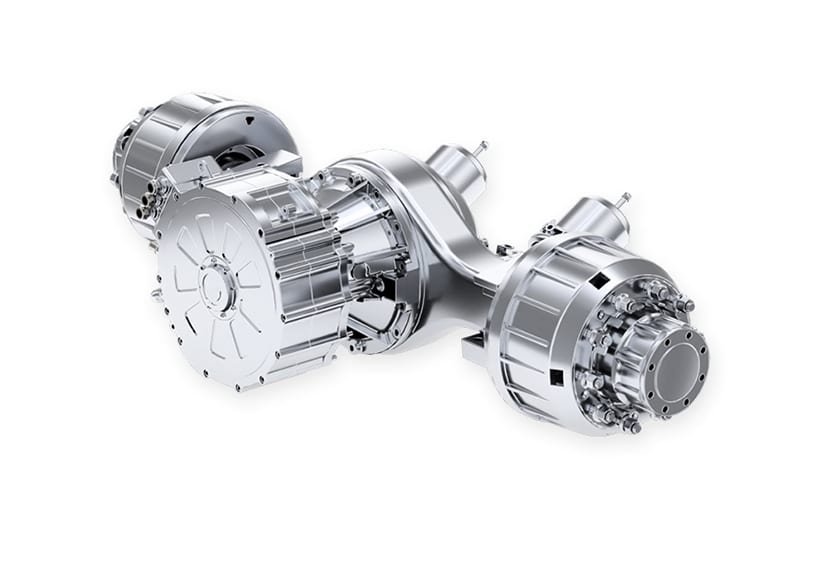

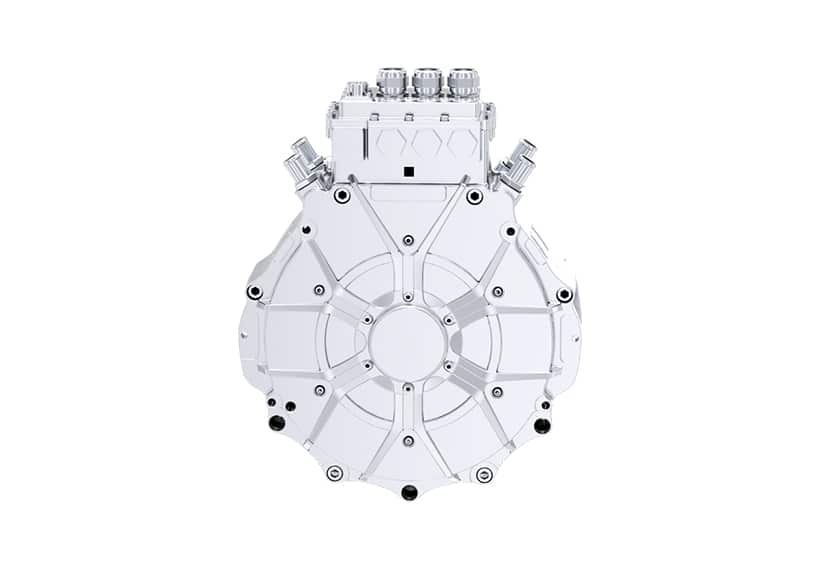

Axial flux motor is 50% lighter in weight and 50% smaller in axial size than traditional PMSM motors. They significantly enhance the performance of electric vehicles and various industrial applications. Our electric axle with axial flux motors is versatile, used in 6X4 highway tractors, 6X4 dumpers, 8X4 dumpers, concrete mixers, excavators, light trucks, city buses, sanitation vehicles, and more. Various parameter options are available to meet your customization needs.
Our Traction Motor Systems are used in various Electric Vehicle types, such as electric commercial vehicles, construction machinery, ship, etc.
| Model | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 | Model 7 | OEM/ODM | |
| Rated Voltage (VAC/VDC) | 540V | 540V | 540V | 540V | 630V | 620V | 620V | We are able to customize the products to meet customers‘ requirements. If you are in need of a product with a different rated voltage, current, or power, feel free to download the “Requirement Sheet”, fill it out, and send it to us as an attachment via email. Our engineer team will review your request and provide you with a customized solution tailored to your needs. | |
| Rated/Peak Torque (N·m) | 220/420 | 450/800 | 330/800 | 620/1200 | 1100/2400 | 1560/3000 | 3000/6000 | ||
| Rated/Peak Speed (rpm) | 3500/9000 | 2200/6000 | 3200/8000 | 2200/5500 | 1500/4000 | 1900/3500 | 1815/3500 | ||
| Rated/Peak Power (kW) | 81/120 | 104/150 | 111/188 | 143/220 | 173/300 | 310/450 | 570/900 | ||
| Max. Efficiency | 96.4% | 97.3% | 96% | 96.4% | 96.4% | 97.3% | 97.3% | ||
| Weight | 41kg | 75kg | 65kg | 106kg | 148kg | 175kg | 362kg | ||
| Size (mm) | 353x147x408 | 425x178x486 | 410X164.6X518.5 | 480x199x490 | 555x202x549 | 592x206.6x598 | 592x392x778 | ||
| Applications | 7-12m city bus and sanitation vehicle | For tractor,refitted vehicles,sanitation vehicles | For tractor and special vehicle | For tractor and refitted vehicle | For oil pump motor for excavator | For oil pump motor for rotary drill | For mining truck | ||
Spainish first all-electric boat. Our collaboration marked a big step in eco-friendly boating.
We equipped the vehicle with an integrated electric drive axle with a maximum output torque of 2266 Nm.
We’ve equipped the truck with our 2-in-1 integrated e-powertrain system, seamlessly combining the EV motor and gearbox alongside an independent MCU.
Running in the high-efficiency zone with low fuel consumption.
Spainish first all-electric boat. Our collaboration marked a big step in eco-friendly boating.
We equipped the vehicle with an integrated electric drive axle with a maximum output torque of 2266 Nm.

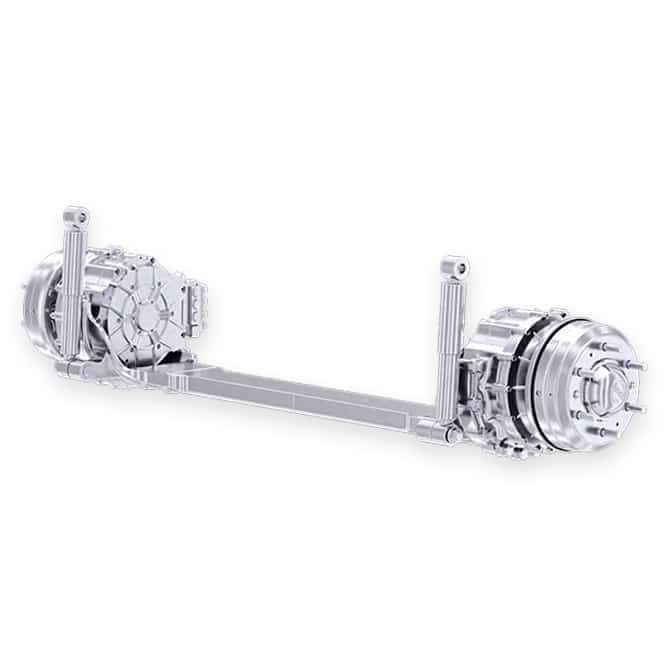

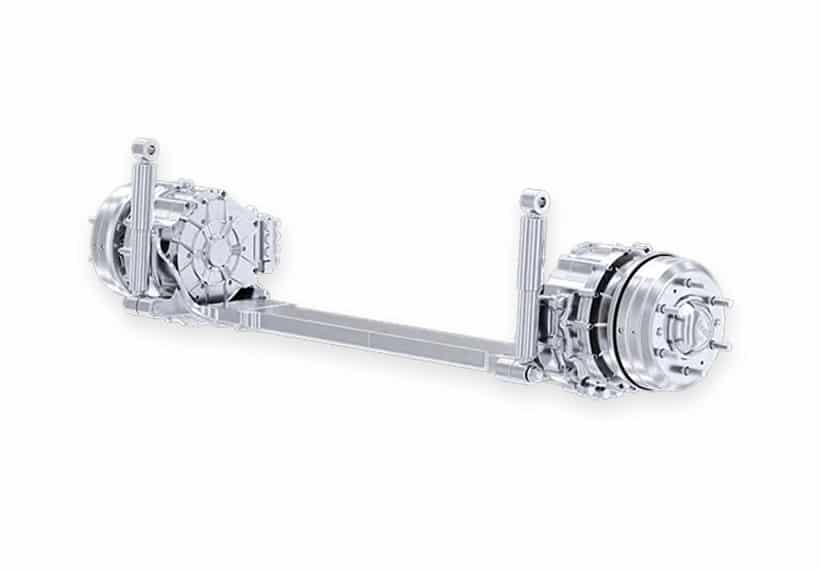

Brogen’s E-Axles Offer a turnkey zero-emission solution for light trucks, heavy trucks, buses...
