Brogen provides high-voltage electric vehicle powertrain system (300+ VDC, 50-500 kW) designed for commercial vehicles including trucks, buses, tractors, and construction equipment (loaders, excavators, bulldozers, trenchers, tower cranes, compactors). Our comprehensive solutions portfolio includes EV battery systems, electric axles, integrated powertrains (combining motor, controller, and related components), and direct drive motors. All products can be customized to meet your specific application requirements.

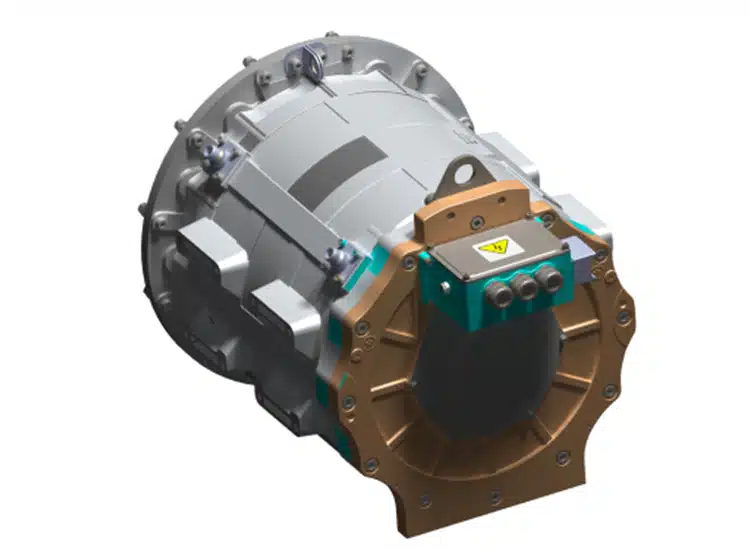

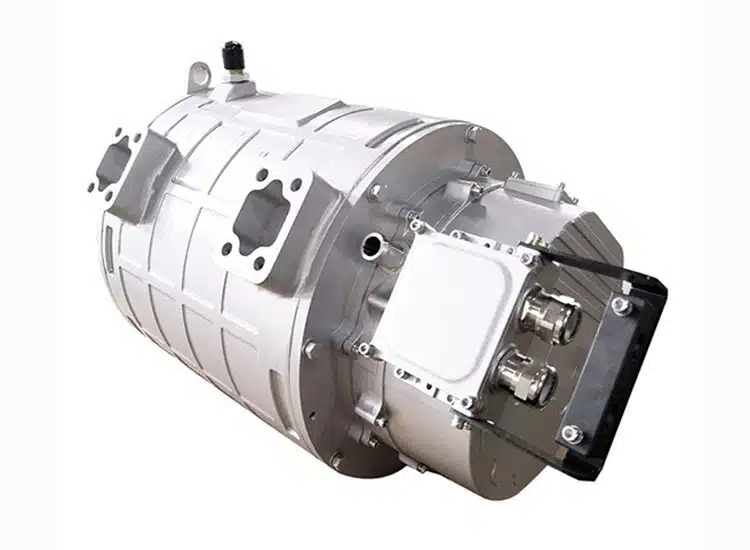

Our Traction Motor Systems are used in various Electric Vehicle types, such as electric commercial vehicles, construction machinery, ship, etc.
| Model | OE2330S | OE3010S | OE7000S | OE16000 | OE20000L2 | OE20000H1 | OEM/ODM | |
| Rated/Peak Power | 75/120kW | 80/160kW | 100/185kW | 180/300kW | 250/380kW | 300/450kW | We can offer customizable products for automakers and OEM ODM service. Feel free to download the “Requirement Sheet”, fill it out, and send to us via email. | |
| Rated/Peak Torque | 350/850N·m | 500/1100N·m | 500/1100N·m | 850/1950N·m | 1200/2400N·m | 1500/2400N·m | ||
| Rated Voltage | 540VDC | 540VDC | 540VDC | 540VDC | 540VDC | 540VDC | ||
| Peak Speed | 5000rpm | 4500rpm | 3500rpm | 3500rpm | 3500rpm | 3500rpm | ||
| Speed Ratio | 2.741/1 | 2.741/1 | 6.61/3.52/1.89/1 | 8.39/3.54/1.74/1 | 8.39/3.54/1.74/1 | 8.39/3.54/1.74/1 | ||
| Protection Level | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | ||
| System Max. Torque | 2330N·m | 3015N·m | 7000N·m | 16360N·m | 20136N·m | 20136N·m | ||
| Applications | 7-12T Truck | 8-10m bus; 11-14T Truck |
14-18T Truck; special vehicle |
25-30T Truck | 31-49T Heavy Truck | 60-90T Heavy Truck | ||
| Model | DMS120 | DMS500 | DMS850 | TZ230XS25 | TZ260XS60 | SDK290 |
| Rated/Max. Power | 60/120kW | 60/120kW | 75/120kW | 25/60kW | 60/110kW | 105/165kW |
| Rated/Max. Torque | 635/1200N·m | 300/500N·m | 350/850N·m | 133/350N·m | 358/950N·m | 500/1000N·m |
| Max. Speed | 3800rpm | 5000rpm | 5000rpm | 4500rpm | 4500rpm | 4000rpm |
| Applications | 5.5-6T Light Truck | 3.5T Light Truck; Airport Tractor |
Sprinter model; Light Truck |
1.5-2.5T Light Truck | 3.5-4.5T Light Truck | 7-10T Light Truck |
| Model | OE3380S | 4H1600 | DM1000 | DM1700 | DM2100 | DM2500 | DM2800 | DM3400 |
| Rated/Max.Power | 120/185kW | 80/160kW | 70/130kW | 80/150kW | 75/155kW | 100/200kW | 115/200kW | 180/290kW |
| Rated/Max. Torque | 500/1300N·m | 800/1600N·m | 400/1000N·m | 750/1700N·m | 900/2100N·m | 1000/2500N·m | 1200/2800N·m | 1600/3400N·m |
| Max.Speed | 3500rpm | 3000rpm | 4500rpm | 3000rpm | 2800rpm | 2800rpm | 2600rpm | 3000rpm |
| Applications | 12m bus; 10m passenger vehicle |
6-7m bus | 6-7m bus | 8m bus | 8.5m bus; 8.5m passenger vehicle |
10m bus | 12m bus | 12m passenger vehicle |
Spainish first all-electric boat. Our collaboration marked a big step in eco-friendly boating.
We equipped the vehicle with an integrated electric drive axle with a maximum output torque of 2266 Nm.

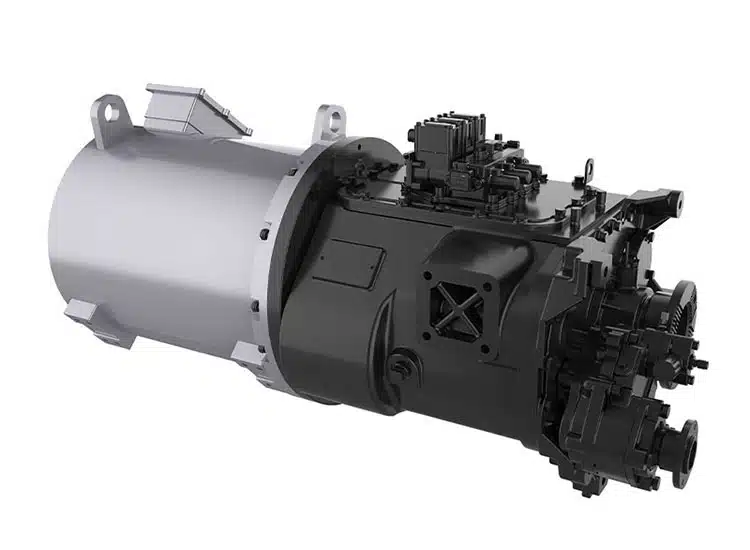

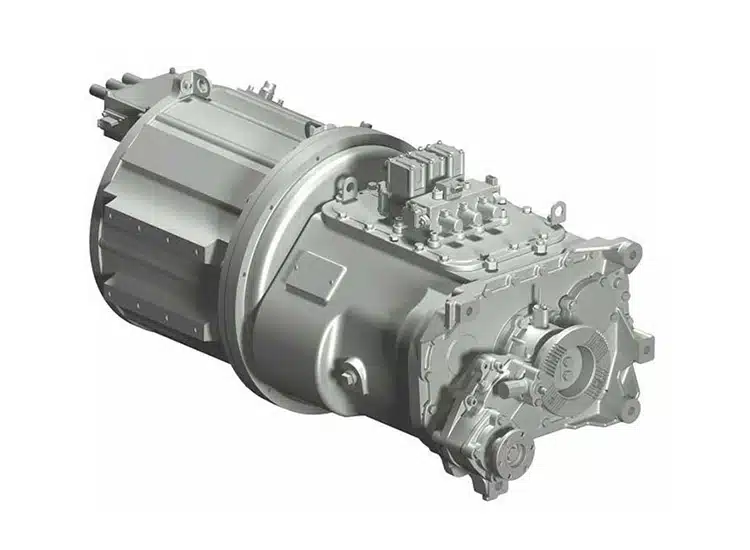

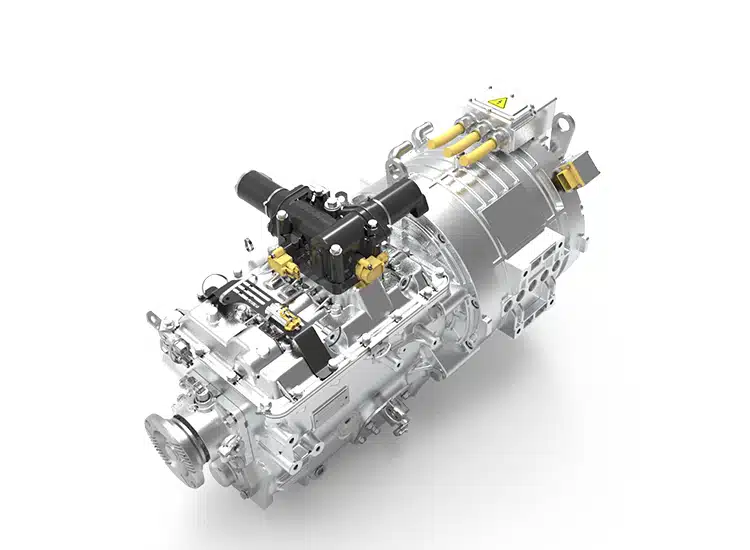

We’ve equipped the truck with our 2-in-1 integrated e-powertrain system, seamlessly combining the EV motor and gearbox alongside an independent MCU.
Running in the high-efficiency zone with low fuel consumption.
Spainish first all-electric boat. Our collaboration marked a big step in eco-friendly boating.
We equipped the vehicle with an integrated electric drive axle with a maximum output torque of 2266 Nm.
Brogen’s E-Axles Offer a turnkey zero-emission solution for light trucks, heavy trucks, buses...

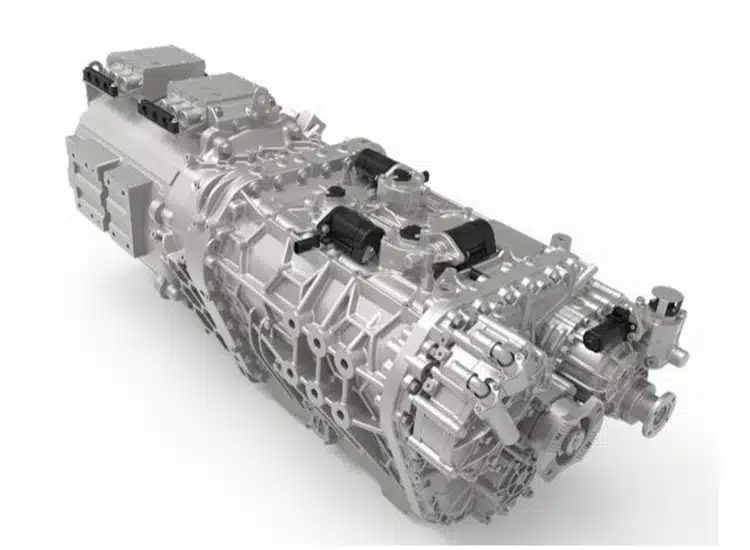

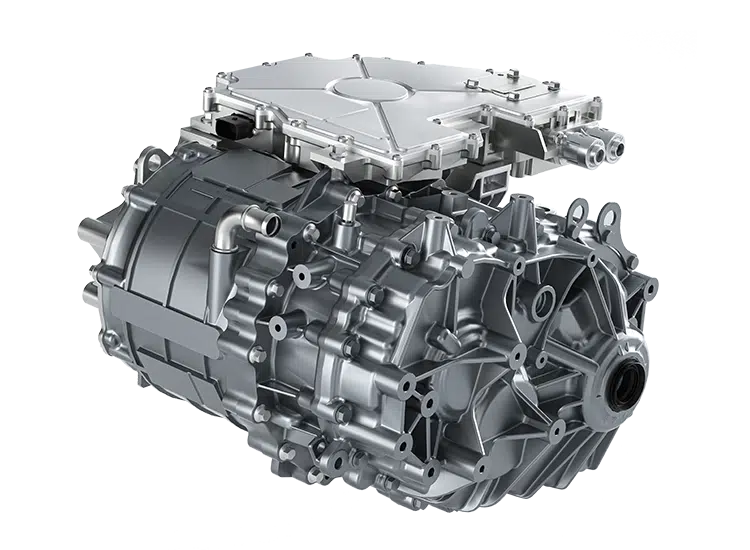

Brogen specializes in the custom design and manufacturing of multi-in-one E-Powertrains.
Explore Brogen state-of-the-art high-voltage EV battery systems, featuring a no-fire promise and high power density
Brogen offers 6.6kW 11kW 20kW 40kW single OBC, OBC+DCDC, OBC+DCDC+PDU for small cars and light commercial vehicles.
